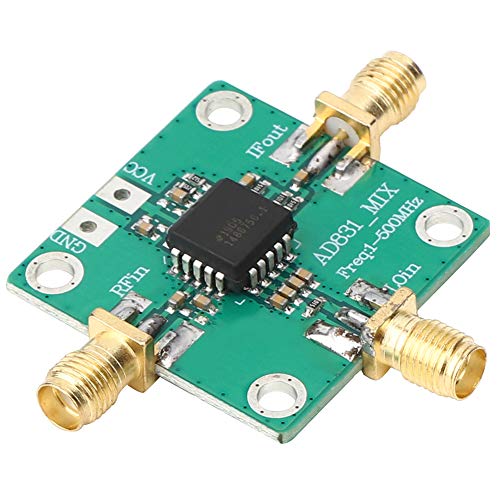

AD831 RF Module | Single - Chip Mixer 0.1-500MHz | Extended Range Receiver/Quadrature Modulation | + 24dBm Interception, 9-11V Input Source

Produktbeschreibung

Low Distortion & Wide Dynamic Range - AD831 single-chip mixer delivers optimized RF-IF down-conversion for extended range receivers, achieving -10dBm LO input consumption with +24dBm third-order interception for enhanced system performance. Single-Ended Input Source Design - This RF module operates on 9-11V DC with built-in DC isolation capacitors at RF/IF/LO ports, simplifying integration while supporting 500MHz input frequency for versatile applications. 250MHz Output Bandwidth - Adjustable gain via external resistor enables controlled transmission, ideal for DC-baseband conversion and quadrature amplitude demodulation with low DC offset characteristics. 10.3dB SSB Noise Figure - Outperforms passive mixers with zero insertion loss, eliminating need for external duplexers while maintaining 70MHz transmission clarity in ultrasound imaging and Doppler detection. Cost-Effective RF Solution - No high-input LO requirements reduce shielding/ isolation challenges, cutting system costs by 30%+ compared to traditional mixer configurations.
