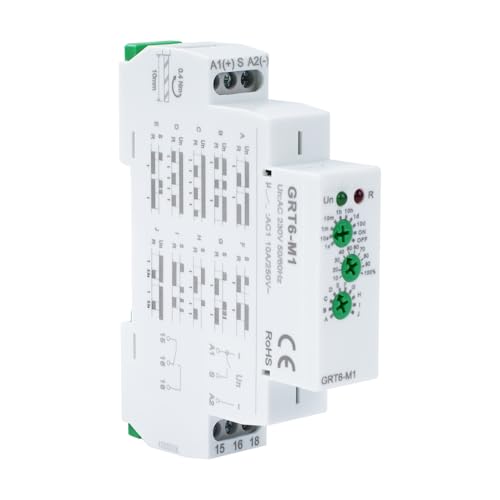

Buyweek Verzögerungsrelais GRT6-M1 Verzögerung Zeitrelais Multifunktions Zeitrelais mit 10 Funktionen Ausschaltverzögerungs AC/DC24V~240V, 35mm DIN-Schienentyp Relais

Produktbeschreibung

【Multi-function】Multi-function time relay, ultra-wide delay range: 0.1s-10 days, the delay time can be set through the control panel button. It has 10 delay functions, including delayed opening, delayed closing, cycle delay, etc. 【Technical Parameters】Voltage range: AC/DC24V-240V (50/60Hz), burden: AC 0.09-3VA/DC 0.05-1.7W, output contact: 1SPDT (1NO1NC), contact capacity: 10A/AC1, adjustment method: rotating knob. 【Flame retardant material】The time relay is made of PC flame retardant material and high-quality electronic components, with fast response speed, stable performance and long service life. 【DIN rail installation】The working status of the time relay is clearly visible through the LED indicator. It is small in size, easy to install and disassemble, and can be installed on a 35mm DIN rail. 【Wide application】The time relay can be used for industrial equipment, lighting control, heating element control, motor, motor, fan control, etc.
