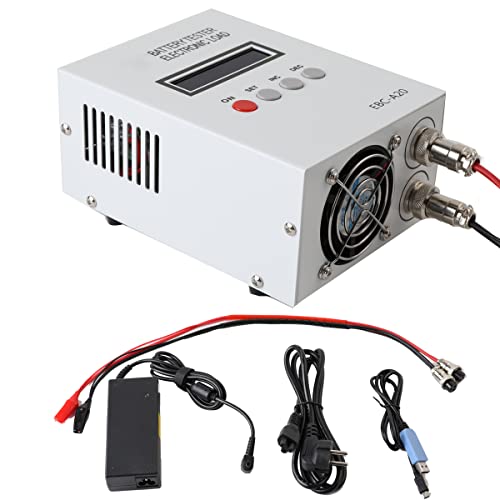

ECUTEE EBC-A20 Batterie Tester Kapazitätstester Batterie Kapazitätstester Batterietestgerät für Lithium/Blei-Säure Batterie Profi Kapazität Tester 5A Ladung 20A Entladung 85W

Produktbeschreibung

★ EBC-A20 is a battery tester with charging and discharge function for testing the capacity of lithium battery/lead acid (charging and discharging 20A, maximum power 5A, 85W). The maximum discharge power is 85 W, within 4.2 V can be 20 A, 8.4 V can be 10 A, a higher voltage is less than 10 A. ★ Capacity test accuracy: 10Ah / 0.001Ah 10A-100A / 0.01A above 100A / 0.1A. Voltage test: 0.0-4.5V (low voltage), accuracy to 0.003V, 4.5V-30V (high voltage), accuracy to 0.01V, current test: 0.1-20A, accuracy to 0.01A. ★ Cable connection: 4-wire test, voltage testing and current testing via different cables to ensure the accuracy. LCD display: voltage / current / capacity / time / power consumption and other data. ★ Supports separate charging and discharging as well as the discharge charge stand connected to the computer, which can be charged and discharged repeatedly and offers advanced features via online software. Supports automatic charging and discharging model, DSC-CC (constant current discharge), DSC-CP (constant power consumption), CHG-CV (constant current charging). ★ Supports automatic charging and discharging model, DSC-CC (constant current discharge) constant discharge current to test battery capacity, DSC-CP (constant power consumption) constant discharge current to simulate power consumption devices, CHG-CV (constant current charge) constant discharge current, support lithium battery capacity test.
