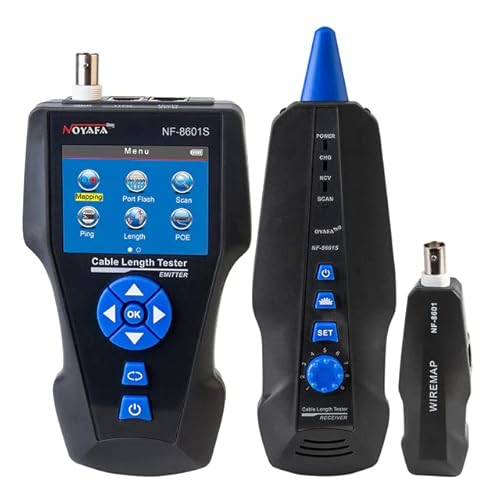

NOYAFA Cable and Network tester NF-8601S TDR Cable Tester For Network/BNC Coaxial/Telephone Cables with Troubleshooting Features of Length, Distance to Fault

Produktbeschreibung

【Cable Length & Distance To Fault】Measures cable lengths and displays the distance to fault accurately using TDR technology. 【Cable Supports】Supports cat5e, cat6, cat6a, cat7, power cable( 4+2 lan cable, 8+2 lan cable), Tel cable, Coax cable tracking and testing. 【PoE Presence】Identify which pins are providing power and detect how much voltage. 【PING Function】Test network performance, data packet, min & max time. 【Cable Tracing】Tone trace cable with complete AC interference rejection, three modes: high frequency / PoE switch / low frequency.【Hub Blink】Hub blink for locating network ports by the flashing port light on a server/switch/hub/router port. 【Core Troubleshooting】Tests cable Lengths, distance to fault (DTF), graphical wire mapping, opens, shorts, etc. 【TF Card】TF card included to export data to the computer. 【Voltage Detection】A voltage detector is included in the receiver (90 - 1,000V). 【Certification】Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard. TECHNICAL INDEX Function NF-8601S Track Cables RJ45+RJ11 BNC Measure cable length RJ45+RJ11 BNC Check cable errors RJ45+RJ11 BNC Power supply Lithuim battery Display screen Color Length Measurement Range: 1-1500m Calibration Precision 2%(+/-0.5m, or +/-1.5feet) Measurement precision cable>50m) 3%(+/-0.5m, or +/-1.5feet) high/Low frequency mode √ Anti-current interference √ Data exported to PC √ Port flash √ Scan on PoE switch √ POE Detecting √ PING function √ AC Voltage detecting √ Remote units 1pc
