Sujurio 1 Set DT Steckerklemmen-Set Größe 16 männliche Pins 1060-16-0122 / Buchsen 1062-16-0122 offener , Metall

Produktbeschreibung

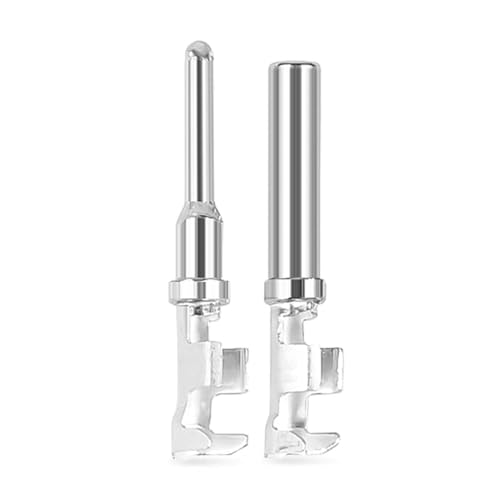

DEUTSCH PIN and SOC stamping contacts: a total of 100 pairs, 100 pins contacts (1060-16-0122), 100 socket contacts (1062-16-0122) and DT, HDP20, HD30, DTHD, HD10, stitching series connector is compatible. Configuration: Each contact has a thread, insulation cylinder, fixed shoulder and cooperative end. The socket has a protective cover. In use, keep the shoulder fix the contact in the connector to prevent the shell from falling off. Size 16 Open tube-shaped contact: The stamping molding contact series is produced by a flat band material on the precision stamping machine. It is easy to and install it in the connector with the wires, each 13 (maximum), and the wire range is 14-20AWG. DT stamping molding contact material: The terminal is made of phosphorus and bronze, which has wear resistance/ resistance. The wing -connecting piece is plated, which can improve welding. For some applications that require high, of the welding wire can be welded after the terminal is pressed. The effect is of the closed wire to avoid oxidation and reduce the contact resistance Applicable pressure connection tools: It is recommended to use Act--16DT pressure connection tool. The wire terminal pressure connection tool is a dedicated pliers for pressing Germany 16#open cylindrical/socket terminals.
