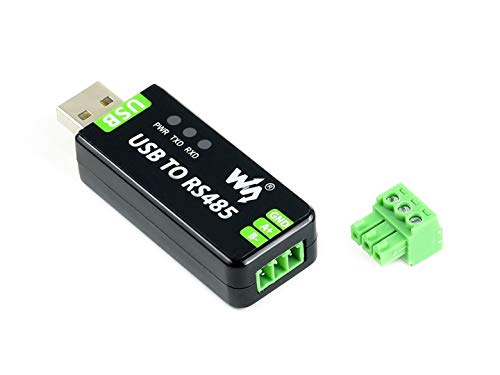

Waveshare Industrial Bidirectional Converter, USB Convert to RS485, Onboard Original FT232RNL and SP485EEN

Produktbeschreibung

This Converter support USB to RS485 bidirectional conversion. Due to its stable communication, it's ideal for industrial control equipments and/or applications with high communication requirement. with 3 LEDs for indicating the power and transceiver status, PWR: red power indicator, light up when there is USB connection and voltage is detected, TXD: red TX indicator, light up when the USB port sends data, RXD: red RX indicator, light up when the device ports send data back Baudrate: 300-921600bps; Host port: USB, Device port: RS485; Operating system: for Mac/Linux/Android/WinCE/Windows10/8.1/8/7/XP; Operating environment: Temperature: -15℃ ~ 70℃, Humidity: 5%RH ~ 95%RH Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, Lighningproof & anti-electrostatic; Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance RS485→Connector: screw terminal; Pins: A+, B-, GND; Direction control: hardware automatic control; Protection: 600W Lighning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor); Transmission distance: about 1200m (low rate); Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) USB→Operating voltage: 5V, Connector: USB-A, Protection: 200mA self-recovery fuse, ESD protection, Transmission distance: about 5m; Provide online user manual, please refer to it while using
