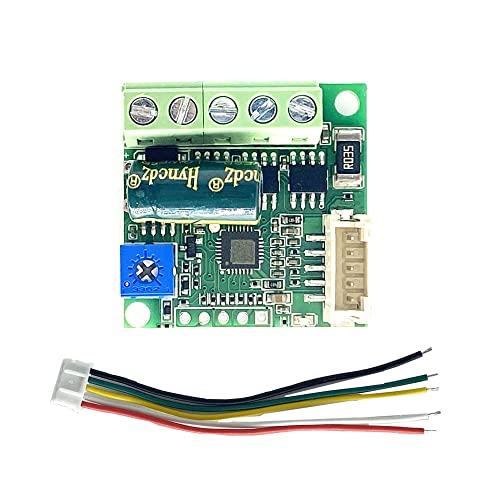

iHaospace DC 6-28V 0-100W Bürstenloser Motordrehzahlregler mit Hall BLDC Treiber Board Modul mit Kabel, Dreiphasige Motortreiberplatine

Produktbeschreibung

This drive is a low-power fan brushless with Hall drive, and it can also be embedded in other systems. It is specially used for air pumps, water pumps, oil pumps, fans, etc. and industrial control electric motors of small space and low power DC three-phase brushless motors. Small tools, etc., are not suitable for high-power motors such as long-term full-load current work, it is recommended to strengthen heat dissipation Small size embedded, brushless with Hall controller, good performance and multiple functions There is a potentiometer on the board for speed regulation, and it is sent to the Hall lead-out cable Working voltage: 6-28V (limit 30V) , Drive Current: Rated 3.5A Peak 4A . Current-limiting and locked-rotor protection: current-limiting protection when the current exceeds 4A, and the motor is locked-rotor for 5 seconds for shutdown protection The power of this module is small (up to 100W), and the overload capacity is weak. It should be used with a margin. It is not allowed to connect to a high-power motor for work or test machine. Forcible work has the risk of impact damage to the power tube. It is recommended to use 12V power supply within 42W, 24V Power supply within 84W
