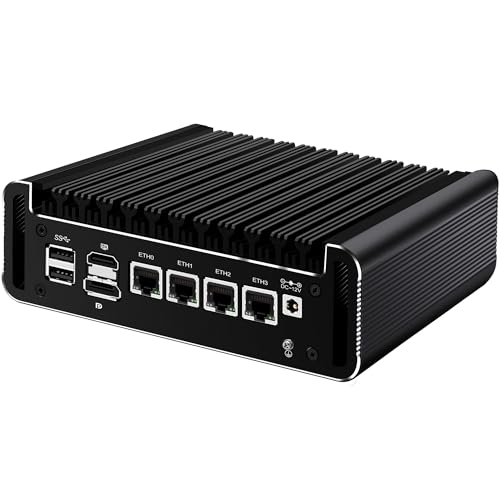

AIOPCWA N355 Mini PC Firewall Appliance (N305 Upgrade), Fanless Mini Computer with 4 x i226-V 2.5GbE LAN, OPNsense Micro PC DDR5 32GB RAM 1TB NVMe, PCIe3.0 x4, HD+DP, 2-NVMe, TF

Produktbeschreibung

High Power Efficiency CPU: Equipped with 2025 New Gen Twin Lake Core 3 N355 processor, 8C/8T, up to 3.8GHz, TDP 9-15W, with nice performance-to-power ratio. UHD Graphics with 32 EUs supports 4K video codec (AV1/H.264/H.265, etc.) and smoothly plays high-resolution videos. Support lntel Unison App, AES-NI, Auto Power On, Wake on LAN, PXE DDR5 and Multiple Storage Supported: 1 x 4800MT/s DDR5 SODIMM RAM slot, up to 32GB. 2 x M.2 2280 M-Key NVMe SSD slot (Native NVME1 is PCIe3.0 x4, the NVME2 is converted from the M.2 E-Key by adapter board, PCIe3.0 x1). 1 x SATA3.0 slot (Sharing signal with M.2 E-key). M.2 E-Key, NVME2, and SATA3 are mutually exclusive (3-in-1) 2.5Gigabit High Speed Network: 4 x i226-V 2.5Gbit Ethernet rj45 ports, adaptive 100M/1000M/2.5G, not only suitable for Win10/11 for computer office, but also for PF-sense, OPN-sense, Open-wrt for software router firewall or Proxmox, ESXi for virtualized server Various External I/O Interfaces: HDMl1.4 + DP1.4, supporting dual screen synchronous/asynchronous display, up to 4K@60Hz. 2 x USB3.0 and 4 x USB2.0 ports for data transfer or connecting a variety of peripherals, 1 x MicroSD card slot for system boot or data storage, 1 x Auto Power-On switch, 1 x Clear CMOS button for recovery boot and BIOS reset in case of boot failure Supports Fanless NAS upgrade: NVME1 can be split into 4 x PCIe 3.0 x1 NVMe slots, enabling the system to be upgraded for NAS usage. With a total of 5 x NVMe slot, it is fully compatible with True-NAS. Integrated firewall and NAS functionality can be achieved through systems such as PVE. The product manual will be provided before shipment
