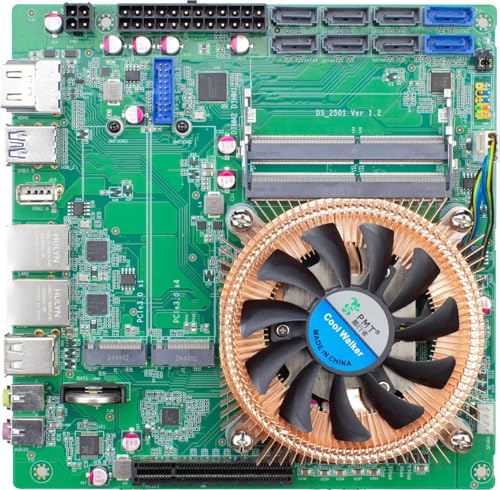

AMD Ryzen 7 5800H 8-Bay NAS Firewall Motherboard,ITX Mainboard Mini PC Gaming,SATA3.0 (8X) + Dual M.2 NVMe,2.5G Dual LAN (2X),DDR4 SODIMM (2X),PCIe 3.0 x8,Home Server, PFSense, OPNsense,UnRAID

Produktbeschreibung

Powered by the AMD Ryzen 7 5800H 8 Core 16 thread 3.2GHz up to 4.4GHz, 16M Cache, TDP 45W with Radeon 8-core Graphics (2000MHz), ideal for NAS virtualization, firewalls (pfSense/OPNsense), 4K media transcoding, and light gaming. 8x SATA3.0 ports + 2x M.2 2280 NVMe slots (PCIe 3.0 x4 + x1) for flexible storage configurations (RAID 0/1/5/10) Supports up to 64GB DDR4-3200MHz via 2x SODIMM slots (non-ECC) Ideal for building high-capacity NAS systems (UnRAID/TrueNAS) with mixed HDD/SSD storage Front-panel USB 3.2 headers for additional connectivity Dual Intel i226-V 2.5Gbps Ethernet ports for high-speed networking, perfect for firewalls, routers, or NAS applications Dual HDMI 2.0 ports supporting 4K@60Hz simultaneous output (great for digital signage or multi-monitor setups) 5x USB ports (2x USB 3.2 + 3x USB 2.0) plus audio/mic jacks for comprehensive peripheral support PCIe 3.0 x8 slot for adding graphics cards , 10G NICs, or RAID controllers Standard Mini-ITX form factor (17x17cm) fits most cases Supports 115X/AM5 cooling solutions (cooler not included) with 4-pin CPU_FAN and SYS_FAN headers 24-pin + 4-pin ATX power connectors (must be connected simultaneously) Server-grade functions: Auto power-on, Wake-on-LAN, RTC timer, and hardware watchdog Easy maintenance: Clear CMOS jumper, BIOS reset (F3), boot selection (F7), and DEL to enter BIOS Comprehensive I/O: Includes front-panel USB 3.2 headers, F_Panel connector, and power/status LEDs Stable power delivery design for 24/7 operation Ideal for: NAS, firewalls, home labs, HTPC, light gaming, and virtualization platforms
