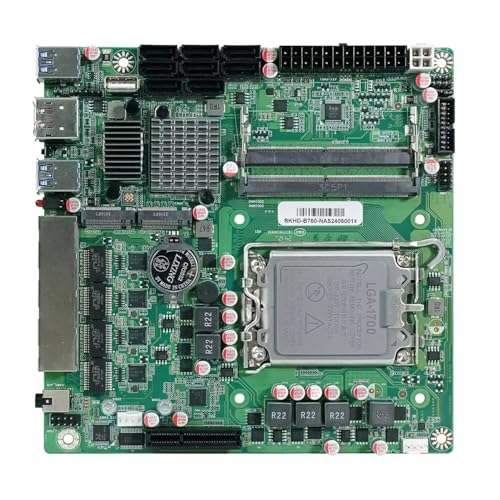

B760 Mini-ITX NAS Mainboard - Intel 12./13./14. Gen LGA1700-8-Fach Laufwerksaufnahme - 8X SATA + 2X NVMe - 4X 2.5G LAN - DDR5 & PCIe x4 - Firewall-Unterstützung - Heimserver/Rechenzentrum

Produktbeschreibung

Supports 12th to 14th Gen processors, including Celeron, Pentium, and Core i3/i5/i7/i9, delivering powerful multitasking and computing performance for NAS, home servers, or compact workstations. 2x DDR5 SO-DIMM slots (up to 96GB @ 4800MHz) for high-speed memory performance. 2x M.2 2280 NVMe SSD slots + 8x SATA 6Gb/s ports (3 native + 5 via JMB585 controller), supporting RAID 0/1/5/10 for speed, redundancy, or hybrid configurations 4x i226-V 2.5GbE LAN ports for ultra-fast wired networking, ideal for NAS and data-intensive applications. 1x PCIe x4 Gen4 slot for adding GPUs, 10G NICs, or other expansion cards. 170x170mm Mini-ITX form factor saves space while packing enterprise features: Wake-on-LAN (WOL), PXE boot, scheduled power-on, and hardware watchdog for remote management. UEFI-only BIOS for modern OS compatibility. 24Pin + 4Pin ATX power design ensures stable operation under load. UHD Graphics (processor-dependent) with DP + HDMI outputs for dual-display setups.
