CM5 zu Pi 5 Adapter Platine für Compute Module 5, Alternative Lösung für Raspberry Pi 5, Integrierte ETH, USB, MIPI, HDMI, Audio-Header Anschlüsse usw. Unterstützt Anschluss an Mikrofon

Produktbeschreibung

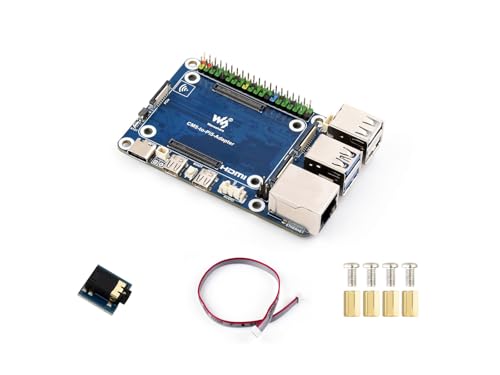

CM5 to Pi 5 adapter is a baseboard that can be used with Raspberry Pi Compute Module 5, use CM5 to reproduce the original appearance of Pi 5 as much as possible, compatible with the interfaces of Pi 5, alternative solution for Raspberry Pi 5 Onboard Gigabit Ethernet RJ45 port, 16PIN PCIe, Pi 40PIN GPIO header, USB 3.2 Gen1 × 2, USB 2.0 × 2, Dual MIPI, Micro HDMI port × 2, PoE 4PIN header, audio header, etc. comes with an audio adapter for connecting 3.5mm headphone / microphone Precautions: 1). Do not plug or unplug any device other than USB and HDMI when the device is powered on. 2). Type C can be used as a USB SLAVE interface to flash images. 3). Onboard default 2 USB 3.2 Gen1 port Precautions: 4). Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) Precautions: 5). The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode. 6). Do not connect other devices when using Type C for flashing
