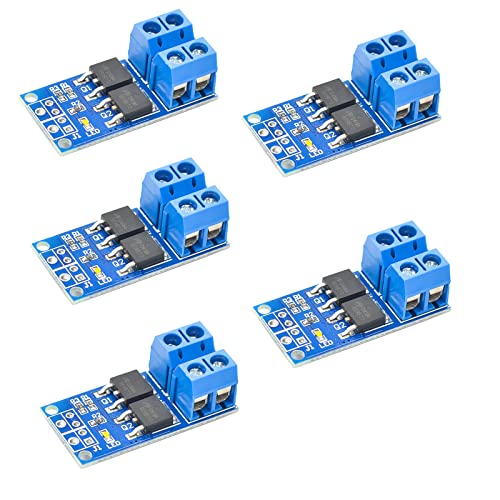

DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOS Tube Field Effect Tube Trigger Switch Driver Module 0-20KHz PWM Regulation Electronic Switch Control Board, Pack of 5

Produktbeschreibung

Operating voltage: DC 5V--36V. Trigger signal source: digital high and low level (DC3.3V - 20V), can be connected to microcontroller IO port, PLC interface, DC power supply, can be connected to PWM signal, signal frequency 0-20KHZ support. Output capability: DC 5V--36V, continuous current 15A at room temperature, power 400W, auxiliary cooling conditions, the maximum current up to 30A. Double MOS parallel active output, lower internal resistance, higher current, strong power, 15A at room temperature, 400W, to meet the use of most devices. Applications: The output can control high-power devices, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. It can be input PWM to control the motor speed, the brightness of the lights, etc.
