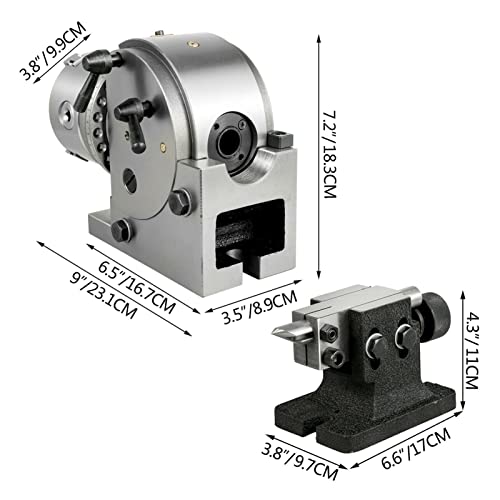

Dividing Head Precision Semi Universal BS0 BS1 4" 5" 6" Indexing Head W/Tailstock & Chuck for Drilling Milling Grinding(With 4In 3-Jaw Chuck)

Produktbeschreibung

Adjustable Angle The semi universal dividing head features 6 5 4" 3-jaw chuck; Headstock adjustable from the horizontal position to 90 degree upward. With 6In 3-Jaw Chuck: Swing: 6-1/2"/168mm, Center Height: 5"/128mm. Free 3 more jaws for 6" chuck. With 5In 3-Jaw Chuck: Swing: 6-1/2"/168 mm. Center Height: 3-15/16". With 4In 3-Jaw Chuck: Center Height: 4"/100mm. Free 3 more jaws for 4" chuck. Solid Construction- Made from HT200 to be long life. Rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40. Clear & Accurate Dividing head milling machine with engraving scales The 24 quickdividing holes can complete 2 3 4 6 8 12 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree. MT3/MT2 Tailstock Adjustable- Huge live center for heavy duty workpieces. Ball bearing precision; turns smoothly. Tailstock: MT3/MT2. One free dead center. Rich Dividing Head Set- 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
