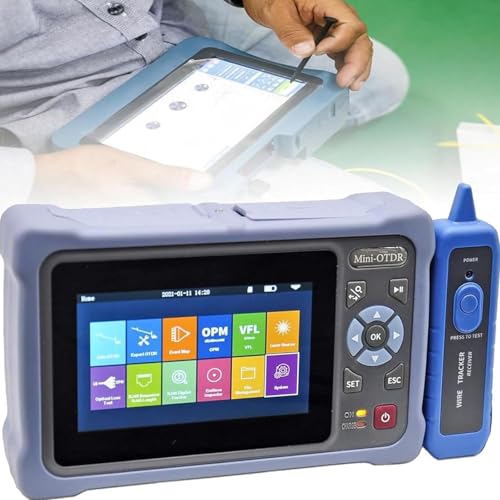

Fibre Optic Tester OTDR 1310/1550 nm A-800U UPC/APC Interface 12 in 1 Multifunctional Fibre Optical Tester Test Range 5 m - 100 km Dynamic Range 24 dB/22 dB OTDR/OPM/OLS/RJ45/VFL,APC

Produktbeschreibung

‌✪【MINI OTDR】: 12-in-1 multi-function OTDR Optical Fiber Tester 4.3-inch multi-touch capacitive screen, integrated automatic OTDR, expert OTDR, event map, can identify and measure the power of 270/330/1k/2kHz frequency light, visual fault location. ‌✪【TWO MODELS】: OTDR: 100km 24/22dB, VFL: 10mw, OTDR/OLS: 1310/1550nm, LED light source. UPC port: AUA800U, OPM: -70~+10dBm. APC port, AUA800A, OPM: -50~+26dBm. ‌✪【OTHER FUNCTIONS】: SC/FC ports, VFL red light source interface (2.5mm universal SC/FC/ST), OTDR/stable light source interface (can be changed to SC/UPC, FC/UPC), OPM optical power meter interface (2.5mm universal SC/FC/ST), RJ45 cable sequence test/cable length. ‌✪【TWO MODES】: OTDR Mulit-Function Tester automatic OTDR mode, just set the wavelength and measurement time, the machine can automatically complete the test. Expert mode OTDR can set parameters such as wavelength, measurement range and pulse width. ‌✪【FILE STORAGE】: All test curves of the fiber optic tester kit are saved in the SD card that comes standard with the instrument. Press [File] to enter the file usage interface. You can open, delete and rename files for further analysis or data processing.
