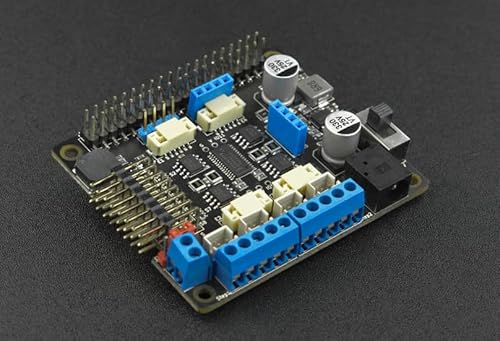

MicroMaker Raspberry Pi Motor Driving Expansion Board (Compatible with Raspberry Pi 4B / 3B+ / 3B / Zero) - SKU DRI0054

Produktbeschreibung

SKU:DRI0054 Supports driving 8 servos simultaneously. 3Pin (black, red, blue GVS) standard interface wiring, convenient for connecting servos, servo power can switch to external independent power supply 12-bit resolution, adjustable PWM frequency up to 1.6KHz, configurable push-pull or open-drain output Supports 4-way 6~24V DC motors, PH2.0 interface or screw terminal Suitable for Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B Reserved camera and DIP display screen ribbon interface The expansion board reserves 2 IIC expansion interfaces, 1 serial interface Onboard passive buzzer, onboard infrared receiver Applications DIY robots Smart cars Robotic arms Intelligent cloud decks Specification Power supply voltage: 6 ~ 25V Power interface: DC2.1 interface or 3.5mm wiring column PWM servo interface ×8 DC motor interface ×4 Encoder motor drive interface ×4 6 ~ 25V The IIC address of the driver board is 0x60
