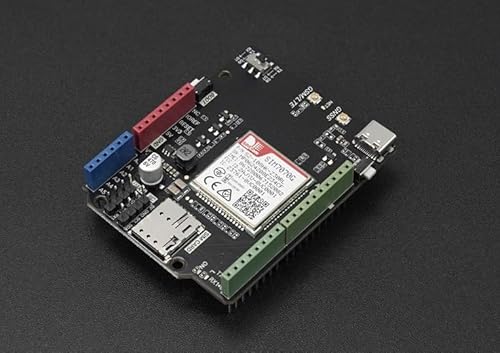

MicroMaker SIM7070G NB-IoT/LTE/GNSS/GPRS/GPS Expansion Shield (Global) - SKU DFR0572-NEW

Produktbeschreibung

SKU:DFR0572 Features Supports global frequency bands for NB-IoT Supports CAT-M communication Supports GNSS satellite positioning (GPS, CLONASS, Galileo, BD) Supports multiple frequency bands including CAT-NB/CAT-M/GSM/GPRS/EDGE Comes with built-in AT commands, software library is encapsulated, eliminating the need for lower-level development Comprehensive certifications Specification Operating Voltage: 5V (Note: The module will consume a large amount of current at the moment of network connection, an external power supply is needed during operation) Input Voltage: 7~12VDC Data Transmission GPRS: 85.6Kbps(UL), 107Kbps(DL) EDGE: 296Kbps(UL), 236.8Kbps(DL) LTE Category M1: 589Kbps (DL) LTE Category M1: 1119Kbps (UL) LTE Category NB1/NB2: 127Kbps (DL) LTE Category NB1/NB2: 158.5Kbps (UL) EGPRS: Compatible with MCS 12 Supported Bands NB-IoT: B1 B2 B3 B4 B5 B8 B12 B13 B18 B19 B20 B25 B26 B28 B66 B71 B85 CAT-M (LTE-HD-FDD): B1 B2 B3 B4 B5 B8 B12 B13 B14 B18 B19 B20 B25 B26 B27 B28 B66 B85 GSM/GPRS: GSM850MHz EDGE: EGSM900MHz, DCS1800MHz, PCS1900MHz GNSS: GPS, GLONASS, BeiDou, Galileo, Protocol: NMEA Interfaces NB-IoT Antenna Interface: IPEX1 GNSS Antenna Interface: IPEX1 SIM Card: NB-IoT/CAT-M/2G Card (Only supports 1.8V SIM card, not 3V card)
