MicroMaker SparkFun Qwiic pHAT v2.0 for Raspberry Pi - Stemma QT/Qwiic - SKU 5142

Produktbeschreibung

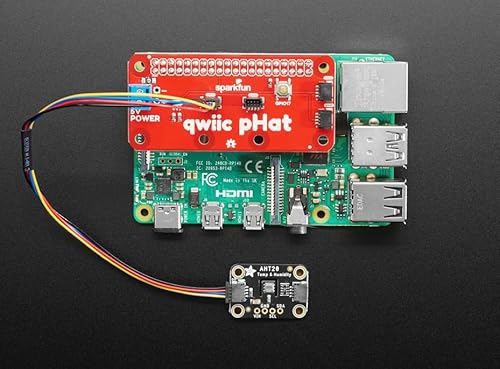

Herst.- Nr.: 5142 Produktkategorie: Raspberry Pi Hats / Add-on-Boards Zum Gebrauch mit: Raspberry Pi The SparkFun Qwiic pHAT V2.0 for Raspberry Pi provides you with the quickest and easiest way to enter into SparkFun’s Qwiic or STEMMA QT ecosystem while still using that Raspberry Pi that you’ve come to know and love. The Qwiic pHAT connects the I2C bus (GND, 3.3V, SDA, and SCL) on your Raspberry Pi to an array of Qwiic/QT connectors on the HAT. Since this system allows for daisy-chaining boards with different addresses, you can plug in as many sensors as you’d like! The Qwiic pHAT v2.0 has four Qwiic connect ports (two on its side and two vertical), all on the same I2C bus. SparkFun also made sure to add a simple 5V screw terminal to power boards that may need more than 3.3V and a general-purpose button (with the option to shut down the Pi with a script). Also updated, the mounting holes found on the board are now spaced to accommodate the typical STEMMA QT / Qwiic board dimension of 1.0" x 1.0". This HAT is compatible with any Raspberry Pi that utilizes the standard 2x20 GPIO header as well as the NVIDIA Jetson Nano and Google Coral.
