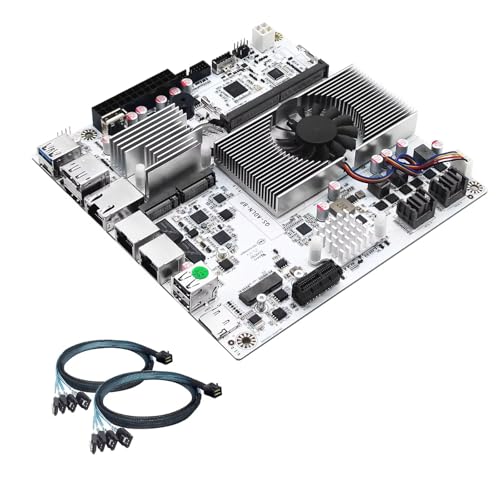

ROUAFWIT M8 NAS Motherboard 8 Bay with 10GbE RJ45, N150 Mini ITX PC Mainboard, 2 x NVMe, Dual 2.5GbE LAN, M.2 WiFi, USB-C, DDR5 32G RAM 1TB SSD, PCIe x1, TF (2X SFF8643 Adapter)

Produktbeschreibung

Efficient Low-Power Processor – The ROUAFWIT M8 motherboard is powered by the new Twin Lake N150 CPU (upgraded from Alder Lake N100), featuring 4 cores and 4 threads with up to 3.6GHz clock speed and 6MB cache. With only 6W TDP, it supports Auto/Timer Power-On, Wake-on-LAN, PXE, Secure Boot, and CPU temperature monitoring. UEFI boot only, designed for stable and energy-saving systems Enterprise-Grade High-Speed Networking – Built-in triple LAN ports: 1× 10GbE AQC113C for high-throughput applications and 2× 2.5GbE i226-V for multi-network environments and link aggregation. Compatible with TrueNAS, Unraid, Linux, and PVE, ideal for NAS, virtualization, and 24/7 continuous operation 8-Bay SATA 3.0 + 2 × NVMe - Equipped with 2 × SFF-8643 ports, which can be converted into 8 × SATA 3.0 ports using two SFF-8643 to 4-SATA adapter cables (sold separately). Includes 2 × M.2 NVMe slots, supporting 2280-sized NVMe SSDs. Features 1 × DDR5 4800MHz SO-DIMM RAM slot, supporting up to 48GB memory modules Rich Video & Peripheral Interfaces – Integrated UHD Graphics (24EU, 1GHz) with hardware decoding and dual 4K@60Hz display output (HDMI 2.0 + DP 1.4). Peripheral ports include: 1× USB Type-C (10Gbps), 1× USB 3.2-A (10Gbps), 2× USB 2.0, and 1× TF card slot for OS boot Expansion & Compact Design – Features M.2 E-Key slot (WiFi/Bluetooth module), PCIe 3.0 x1 slot (compatible with x4/x8, shared with E-Key), front panel USB 3.0 & Type-E headers, and standard 24-pin + 4-pin power connectors. Comes with I/O shield, Mini-ITX 17×17cm size, compact yet feature-rich
