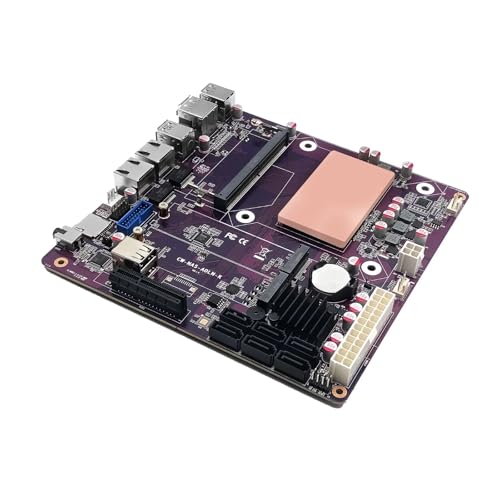

ROUAFWIT NAS Motherboard N100, 6 Bay Mini ITX Mainboard, Barebone NO RAM NO Storage Firewall Board, 2 x i226 2.5G LAN, 6X SATA3.0, 2X M.2 2280 NVMe, 1x PCIe 3.0x4, 1x TF Slot

Produktbeschreibung

ROUAFWIT NAS 12th gen 100 motherboard must connect 24pins+4pins ATX 12V power suppy at the same time to power on, support a cooling fan to improve heat dissipation efficiency, the fan's mounting space supports standard LGA115x Mini-ITX 17x17 form factor industrial 6-Bay NAS mainboard with N100 4C/4T, up to 3.4GHz, UHD graphics, TDP 6W, lower power consumption and higher energy-efficiency, 1x DDR5 slot, RAM up to 48G, default with 4800MHz, HD2.1+DP1.4 dual 4K display 6x SATA3.0 expanded by ASM1166-chip, 2x M.2 NVMe 2280 PCIe3.0x1, 1x PCIe 3.0 x4 slot support expansion of multiple SATA ports, array cards, 2.5G port, 10GB optical-ports, M.2 or video cards (special BIOS firmware is required to expand 1 to 4 M.2 ports), it's stable network storage and fast security transfer N100 firewall appliance with 2x i226-V 2.5GbE ports, 1xRealtek-ALC897, 2-in-1 3.5mm audio interface, 1x USB3.0, 3x USB2.0, built in a set USB 3.0 pin socket to connect the panel via cables, 2x built-in USB2.0 on board for USB flash drive encryption or booting NAS system, 1x TF slot support boot When using n100 nas board first time to connect the RAM, needs to detect hardware appliance after booting, which will take longer time than the normal boot, please wait 3 to 5 minutes, each board tested before shipping, that's why copper plate seems any thermal grease
