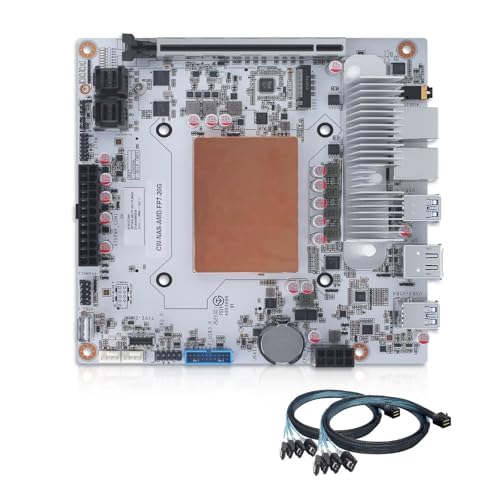

SJRC NAS Motherboard 8 Bay with Dual 10 GbE RJ45, Ryzen 7 8845HS Mini ITX Mainboard with 2xM.2 NVMe PCIe4.0 x4 NAS Board, USB4 40Gbps, 8G DDR5 RAM 128G SSD (2xSFF-8643 Cable)

Produktbeschreibung

Powerful Ryzen 7 AI Processor: The desktop motherboard features the AMD Ryzen 7 8845HS CPU (8C/16T, up to 5.1GHz, 35–54W TDP), integrates a Ryzen AI NPU capable of up to 16 TOPS. It is ideally suited for virtualization, multi-user environments, edge computing, intelligent NAS systems, and AI-driven workloads Flexible Storage & Expansion: The ITX board Features dual SO-DIMM DDR5 slots supporting speeds up to 5600MHz and capacities of up to 96GB RAM slots (backward compatible, non-ECC). It also includes 1xPCIe x16 slot (electrically 4.0 x8), and 2×SFF-8643 ports which can be converted into 8×SATA 3.0 ports via 2xSFF-8643 to 4 SATA adapter cables, and 2xM.2 PCIe 4.0 x4 slots supporting 2280 NVMe SSDs Fast 10 GbE RJ45 LAN & Triple Display: Equipped with dual AQC113-B1-C 10 Gigabit RJ45 ports (Adaptive Rate 1G/2.5G/5G/10G), this NAS motherboard delivers high-speed, stable data transfer. For display, the board with HD2.1+DP2.1+1xUSB4 Type-C ports, supports triple display output with up to 4K@240Hz or 8K@60Hz. It is ideal for multi-monitor workstations or edge computing with visual interfaces Standard Mini-iTX Motherboard Specifications: The white NAS motherboard features 17x17cm form factor with an 8-layer high-density, moisture-proof PCB. It offers full protection for all USB, audio, and network interfaces. It requires both an ATX 24-pin and an ATX 8-pin connector, and supports LGA1700-series coolers Rich Connectivity Options: Equipped with 1xUSB4.0 (40Gbps), 3xUSB 3.0 Type-A ports, 1xUSB 3.0 Type-A female connector, 1xUSB3.2 Type-E (Internal Header) female connector, supports wiring to the front panel, 1xUSB 2.0 Type-A female connector, supports applications like USB drive encryption and partial system boot, 1 x 3.5mm audio port, supporting microphone input and audio output
