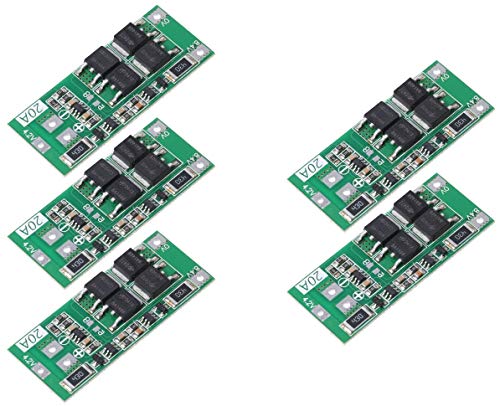

TECNOIOT 5pcs 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board BMS Balance Version

Produktbeschreibung

【2S20A】2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board BMS Balance Version 【Design compact】Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions).Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm (Balancing).Charging voltage: 8.4V - 9.0V. 【Fehlerbehebung!!!】 Wenn der Ausgang (P+ P-) 0 ist. Manchmal ist es notwendig, die Platine zurückzusetzen. Es benötigt eine 8V-12V (dh 9V）Batterie, die einige Sekunden lang an die Klemmen P+ und P- angeschlossen ist, dann wird die Platine zurückgesetzt und die Ausgabe ist korrekt. Sie können die Videoanweisungen unten sehen: https://bit.ly /3ucacLr 【Note】Note 1: The successful start of power drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! ! !); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel plate!!!);Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output. 【Attension】Note 3: When the battery is charged, "430" resistance heating is a normal phenomenon, indicating that the equalizing circuit is working; if the "430" resistance is also heating in the state of not charging, please check whether the wrong line is connected.
