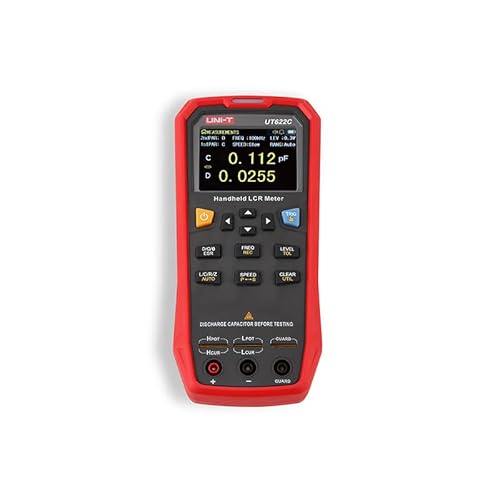

UNI-T UNI-TREND UT622A UT622C UT622E High-precision LCR Meter Industrial Handheld Resistance Capacitance Tester(UT622C)

Produktbeschreibung

The UT622 Series Handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable batiery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement in any occasion. They are suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points etc. 100kHz MAX. TEST FREQUENCY 0.1% ACCURACY 99999 DISPLAY COUNT 20 times/s MAX. TEST RATE Mini-USB CONNECTIVITY 2.8'' TFT LCD DISPLAY 1. Power switch: long press to turn on, short press to turn off 2. Arrow keys: select menu operation keys 3. Trigger key: trigger/select trigger mode 4. D/Q/θ/ESR: secondary parameter selection 5. FREQ/REC: Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz selection and record mode button. 6. LEVEL/TOL: 0.1V, 0.3V, 1V, switch and tolerance mode buttons 7. L/C/R/Z/AUTO: main parameters and automatic identification. 8. SPEED/P-S: Test speed and equivalent mode switch button 9. CLEAR/UTIL: CLEAR clear and UTIL practical configuration menu. Recording mode The recording mode can be used for data statistics to dynamically obtain the Average, Maximum, Minimum and Number of records Tolerance mode The tolerance mode can be used for component sorting. The nominal value, tolerance limit, alarm, LED indicator and counter can be set, and the percentage deviation between the measured value of the main parameter and the nominal value can be calculated for qualified and unqualified Compare, display GO/NG discrimination results. Tolerance range: 1%~20% Test speed: 20 times/s(Fast),5 times(Med),2 times/s (Slow)
