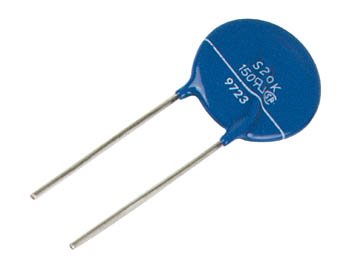

Velleman VDR 50VCA/65VCC = 10 mm

Produktbeschreibung
varistor voltage: 82V (74 ~ 90) * max. clamping voltage: 135 (Vxa) (8/20µs) (1mA test) * max. clamping peak current: 6500A (1st time), 4000A (2nd time) * max. energy (J): 38J (10/100µs), 27J (2ms) * operating voltage: ** Vac: 50V ** Vdc: 65V * type: 20D820 * dimensions: ** D: 22.5mm ** T: 4.5 .. 5.3mm ** d: 1.0mm * pitch: ** e: 10mm * response time: < 25ns * electric strength: 2.5kV * insulation resistance: > 1G ohms * tolerance: 10% (K)
Produktvarianten, Größen und Optionen
