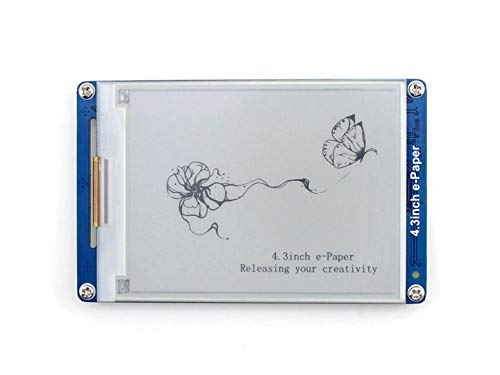

Waveshare 4.3inch e-Paper 800x600 Resolution Serial Interface Electronic Paper Display Panel Module Kit with Embedded Font Libraries Display Geometric Graphics/Texts/Images

Produktbeschreibung

This is a serial interface E-Ink display module, 4.3inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.You don't have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity. Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images; Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash; 4 grey level displaying, 800×600 resolution Adjustable serial interface baud rate, 115200 by default when power up; Powered from 3.3V to 5V, compatible with logic level Ultra low power consumption, sleeping current lower than 5mA; Comes with host computer software, control it directly on your computer
