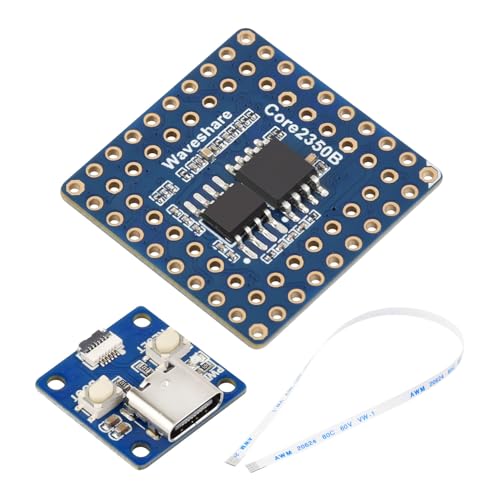

Waveshare Core2350B Core Board, Based On Raspberry Pi RP2350B Dual-core & Dual-Architecture Microcontroller, Operating Frequency Up to 150MHz, 2MB PSRAM, Bundle with Adapter and Cable

Produktbeschreibung

Compact and High-Performance Design: This low-cost, high-performance MCU board by Waveshare features a compact form factor, powered by the RP2350B microcontroller designed by Raspberry Pi. It offers an efficient solution with 48 multi-function GPIO pins, making it ideal for easy development and seamless integration into various projects. Rich WiKi Resources: We provide official Wiki resources, please contact us for more information. Dual-Core Architecture and Versatile Processing Power: The RP2350B chip employs a unique dual-core design, supporting either dual ARM Cortex-M33 or dual Hazard3 RISC-V processors. With a flexible clock speed running up to 150 MHz, it delivers robust performance for a wide range of applications. Expandable Memory Options and Onboard Storage: This MCU board offers memory configurations of 0MB, 2MB, or 8MB PSRAM, along with onboard 520KB SRAM and 16MB Flash memory, ensuring ample storage for data and program code to support demanding tasks. Connectivity and Integration Flexibility: Featuring an onboard FPC 6PIN connector and an adapter board for USB Type-C port support, the board also comes with 64 pins arranged in a standard 2.54mm pitch for easy integration into carrier boards. It supports USB 1.1 with device and host capabilities, enhancing connectivity options. Advanced Peripherals and Low-Power Operation: The board provides extensive peripheral support, including 48 multi-function GPIO pins, 2 × I2C, 2 × UART, 8 × 12-bit ADC, and 24 × PWM channels. Additionally, it supports accurate clock and timer functionality, a built-in temperature sensor, and 12 programmable I/O state machines for custom peripheral control. The low-power sleep and dormant modes further optimize energy efficiency.
