Waveshare Core3566 KIT A Compatible with Raspberry Pi CM4, Package Contain Core3566102032,CM4-IO-BASE-A Board and Necessary Accessories,Rockchip RK3566 Quad-core Processor,with Wireless

Produktbeschreibung

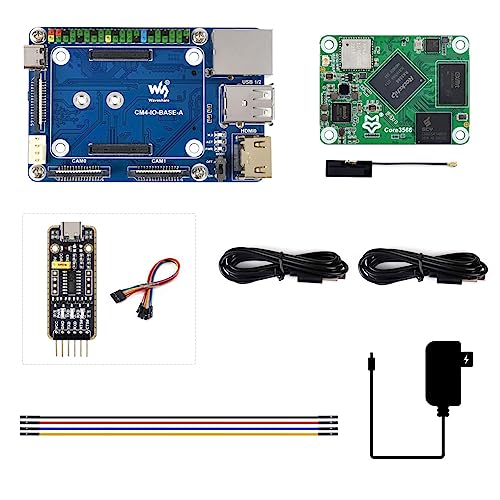

Note: Please confirm the packet contain before placing the order.Please refer to the product’s details picture or contact Waveshare’s customer service to learn about the different options available. Compatible with Raspberry Pi CM4,contain core3566102032(with wireless,with 2GB RAM, with 32GB eMMC),CM4-IO-BASE-A Board and necessary accessories(UART module, 1PIN cables, USB cables, power supply). A compact module which incorporates Rockchip RK3566 quad-core processor with quad-core A55 CPU,dual-core ARM G52 GPU,UPU,NPU,supports video output,PCIE,CSI and other interfaces,suitable for embedded applications.Available in different options for RAM,eMMC Flash and wireless module. RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance.Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU.The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1.The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding.The NPU with computing power of 0.8Tops. Dual-Band WiFi And BT AP6256 Module, Surf The Web Anywhere.(NOTE:Additional antenna is required for WiFi module since it has no onboard antenna.)
