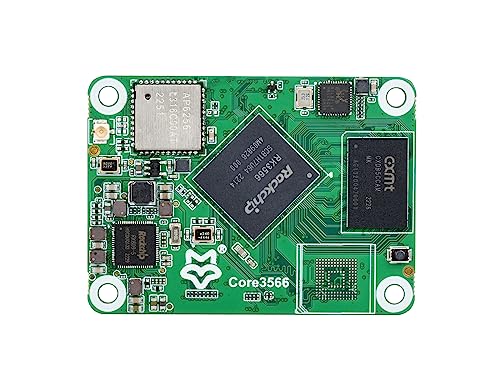

Waveshare Core3566 Module Compatible with Raspberry Pi CM4 and Base Board Rockchip RK3566 Quad-Core Processor with 4GB RAM 0GB eMMC Without Wireless Suitable for Embedded Applications

Produktbeschreibung

Note: Options for RAM/ eMMC/ wireless,please confirm the model before placing the order.Please refer to the product's details picture or contact Waveshare's customer service to learn about the different options available. Compatible with Raspberry Pi CM4, compatible with CM4 Base Board from Waveshare store on amazon,such as SKU:CM4-IO-BASE-B,Computer Module 4 IO Board,Compute Module 4 PoE Board,CM4-DUAL-ETH-BASE and so on. (Note: some interfaces such as USB2.0, HDMI, CSI, etc. are not compatible, please check our product page for details.) A compact module which incorporates Rockchip RK3566 quad-core processor with quad-core A55 CPU,dual-core ARM G52 GPU,UPU,NPU,supports video output,PCIE,CSI and other interfaces,suitable for embedded applications.Available in different options for RAM,eMMC Flash and wireless module. RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance. Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU.The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1. VPU can support 44 K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding. The NPU with computing power of 0.8Tops. Dual-Band WiFi And BT AP6256 Module, Surf The Web Anywhere. (NOTE:Additional antenna is required for WiFi module since it has no onboard antenna.)
