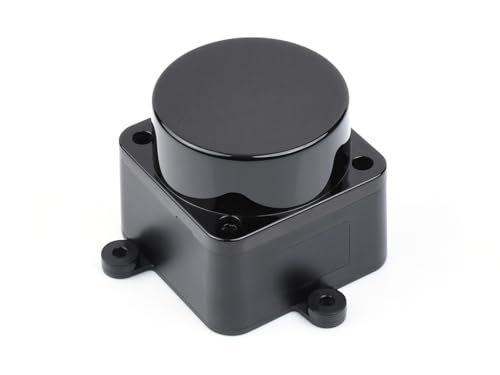

Waveshare DTOF Laser Lidar Sensor STL27L, 360°Omni-Directional Lidar, UART Bus,High Real-Time & Accurate Map Building,Compact Structure Design,Smaller Size, Lower Power Consumption

Produktbeschreibung

It adopts a compact structure design, smaller size, lower power consumption, and can be embedded inside the robot to reduce the overall size and improve its passability.Apply to Service Robot,Drone,Shelf Visit Frequency,Quadruped Robot,Indoor Sports Platform,Smart Speaker/Camera,Multi touch,Mapping and Modeling. Adopting Time of Fight ranging technology, measuring distance according to the laser pulse. The maximum ranging distance can reach up to 25m to meet the demand of most commercial applications, and can reach the measurement accuracy of ±20 mm within the effective detection distance of 8m. Obtain the Environmental Information in A Farther Range, Ensuring The Large-Area Cruising And Mapping Capabilities Of the Robots.(* The data is Data is measured under specific conditions). With efficient algorithm logic to achieve 360° detection of the robots, autonomous mapping, and obstacle detection.Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the surrounding environment and the point cloud information of the location of obstacles. Supports Start-Stop Control Via Software.Open source for demo, schematic diagram and other resources of the adapter board, enabling personalized development and Lidar operation control, effectively prolonging its lifetime.Adopts Coaxial brushless motor, quiet without friction, supports high-speed wireless data transmission with stable performance.Features a longer lasting lifetime up to 10000+ hours, meets the requirement of low failure rates in the projects. Supports scanning at 10Hz and measuring distance at a rate of 21600Hz, effectively reducing navigation blind spots and improving scanning coverage.Supports glass wall detection at specific angles through multi-echo detection technology, reducing collisions during robot operation.Adopts excellent filtering technology to meet the use in 60Klux strong light, suitable for a variety of indoor and outdoor scenarios.
