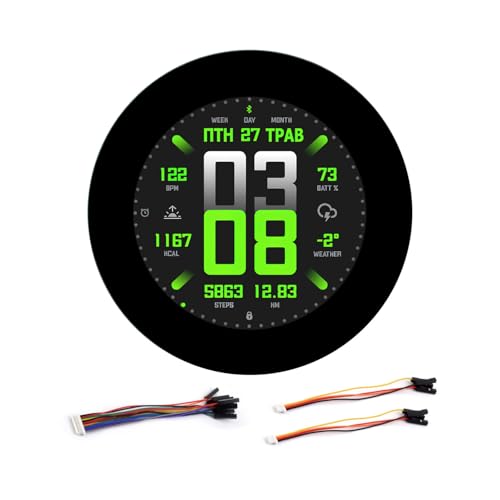

Waveshare ESP32-S3 2.8inch Capacitive Touch Round Display Development Board, 480x480, 32-Bit LX7 Dual-Core Processor, Supports WiFi & BT, ESP32 with Display

Produktbeschreibung

ESP32-S3-Touch-LCD-2.8C is a microcontroller development board with 2.4GHz WiFi and BT BLE 5 support, integrates high-capacity Flash and P/Static RAM. Onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and batt recharge management module, etc Onboard 2.8inch capacitive touch display, 480x480 resolution. Supports 2.4GHz Wi-Fi (802.81 b/g/n) and BT 5 (LE), with onboard antenna Supports touch control via I2C interface, with interrupt support. Built-in 512KB Static RAM and 384KB ROM, with onboard 16MB Flash and 8MB P/Static RAM Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
