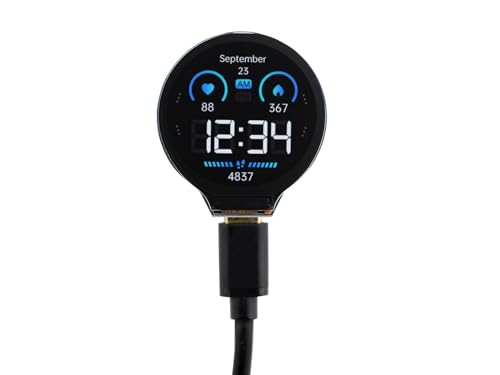

Waveshare ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, with 1.28inch IPS Round LCD, 240×240 Resolution, Supports WiFi

Produktbeschreibung

Equipped with Xtensa庐 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 (BLE), with onboard antenna. Type-C connector, keeps it up to date, easier to use Onboard 1.28inch LCD display, round IPS panel, 240x240 resolution, 65K color. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V lithium battery recharge/discharge header and GPIO headers Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
