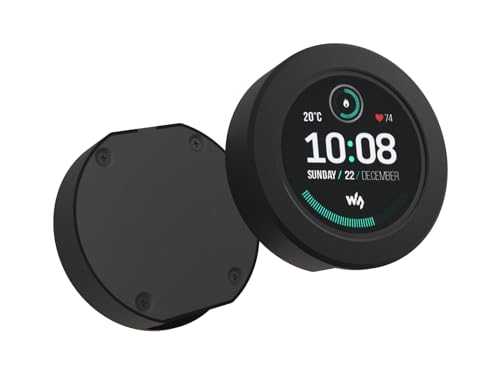

Waveshare ESP32-S3 Development Board, with 1.28inch Touch LCD, Compact Size, Accelerometer and Gyroscope Sensor, Display, with CNC Metal Case, Suitable for Various Smart Devices Development

Produktbeschreibung

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 (BLE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory. Onboard 3.7V lithium batt recharge/discharge header and 6 脳 GPIO pins via SH1.0 connector Type-C connector, keeps it up to date, easier to use. Onboard 1.28inch capacitive touch display, 240x240 resolution, 65K color Adopts CNC metal case with Acrylic dull-polish bottom plate. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
