Waveshare ESP32-S3 RGB LCD Driver Board with 480×480 2.8inch TFT RGB Round Display Capacitive 5-Point Touch, with 32-Bit 240MHz LX7 Dual-Core Processor, 8MB PSRAM and Flash, W-Fi & Blue-T Support

Produktbeschreibung

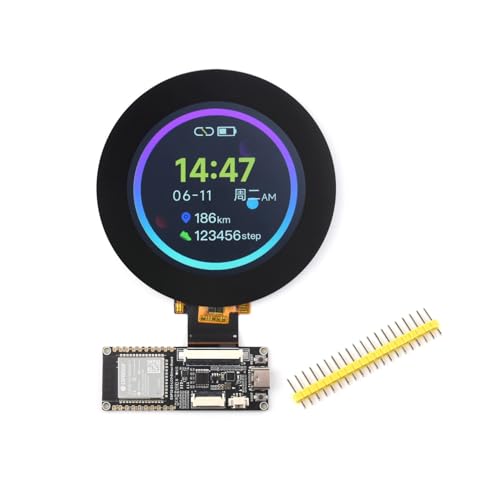

This comes with a 2.8inch RGB round touch display. For more detailed part list, please refer to the Package Content image. Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory. Integrated 2.4GHz W-Fi and Blue-T LE dual-mode wire-less communication, with superior RF performance. Type-C connector, easier to use. Onboard 40Pin SPI+RGB and 18Pin SPI LCD screen connector, strong compatibility and expandability Onboard Lithium batt recharge manager ETA6096 and MX1.25 lithium batt header Castellated module allows soldering direct to carrier boards Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
