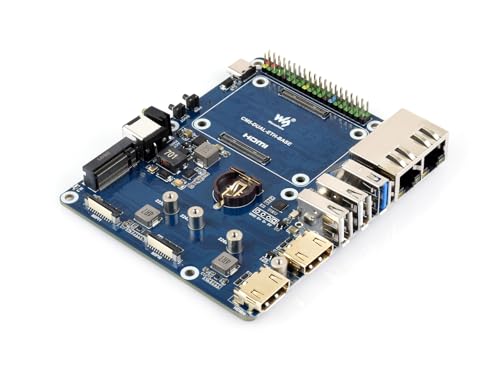

Waveshare Gigabit / 2.5G Dual Ethernet Base Board for Raspberry Pi CM5. Dual RJ45 Ethernet Ports, Supports Dual 4K Display Outputs and Dual MIPI Interfaces, Onboard 40Pin GPIO Header

Produktbeschreibung

CM5 Socket & GPIO Header: Features a standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header, compatible with all variants of the Compute Module 5, including the Lite and eMMC series modules. M.2 NVMe Drive Support: Supports connection to an M.2 NVMe drive, offering faster reading and writing speeds compared to the TF card slot on Raspberry Pi, significantly boosting system and file read/write efficiency. It also supports booting Pi5 from the NVMe solid-state drive. Networking Options: Equipped with dual Ethernet ports: a 1000M Ethernet RJ45 port and a 2500M Ethernet RJ45 port, ensuring robust and fast networking capabilities. USB & MIPI Interfaces: Includes one USB 3.2 Gen1 port, two USB 2.0 ports, and two 4-lane MIPI interfaces (22PIN 0.5mm FFC connectors) for high-speed data transfer and expanded connectivity options. Video, Power, and Additional Features: Dual HDMI ports support 4K display outputs. It also features a 7V~36V wide voltage range power input, a 5V 4PIN JST-SH PWM fan connector, onboard EEPROM, and an encryption chip, all packed into a compact 109.0 × 91.5mm baseboard. Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
