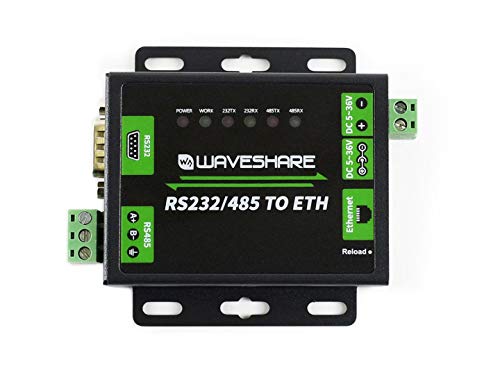

Waveshare Industrial Converter RS232 or RS485 to Ethernet Enables Bi-Directional Transparent Data Transmission

Produktbeschreibung

This industrial RS232/RS485 to Ethernet converter supports Websocket, enables bi-directional transparent data transmission with RS232/RS485 port via webpage directly, and also can be configured via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software. M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable. 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable. Both RS232 and RS485 interface, allow to work independently at the same time without interfering each other. Configurable baudrate (600bps~230.4Kbps), supports five parity check options (None/Odd/Even/Mark/Space). Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST). Multi indicators to monitor communication and work status. Supports Modbus, suit for industrial application. Supports customized heartbeat packets, registration packets, webpage. Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change. Firmware is upgradable via the network. Restore to factory settings via software and/or hardware. Comes with default MAC address, which is customizable. Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software.
