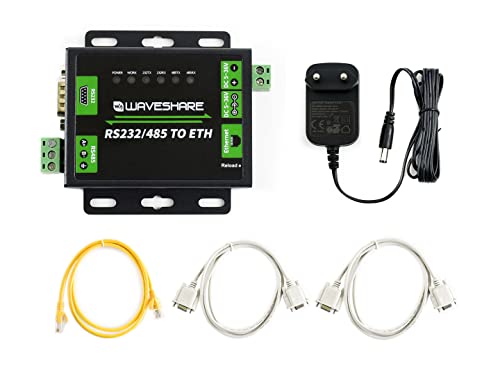

Waveshare Industrial RS232/RS485 to Ethernet Converter Dual Serial Ports TCP Server TCP Client UDP Server UDP Client HTTPD Client Supports Customized Webpage DNS Domain Name Resolution

Produktbeschreibung

M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable. 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable. Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other. Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space. Multi indicators, for monitoring communicating and working status. Supports Modbus, suit for industrial application. Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly. Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data. Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished. Supports customized webpage, allows user to customize the module configuration page. Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change.
