Waveshare Luck-Fox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, with Wireless, Includes PoE Module and 480X480 4inch Touch Display

Produktbeschreibung

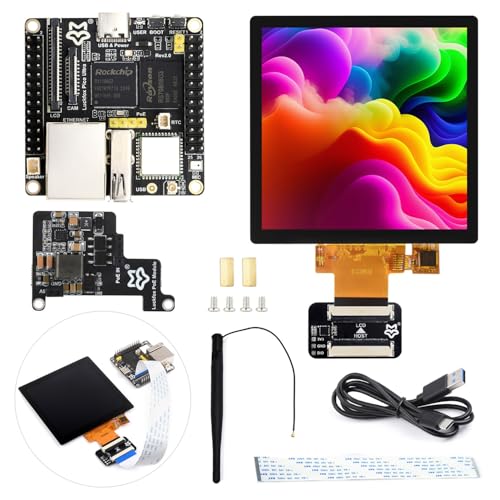

There are several options for this item, this option is with wireless. Includes a PoE Module and 4inch Display (480x480). Please click the image 2 to check the package content. Luck-fox Pico Ultra is a cost-effective Linux micro development board, based on the Rockchip RV1106 chip to provide a simple and efficient development platform for developers, Supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, I2C, USB, etc., which is ideal for embedded applications. Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
