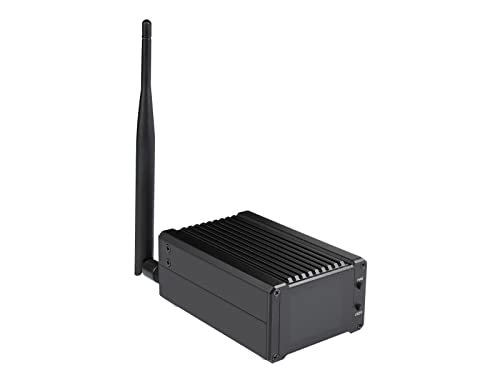

Waveshare Network Attached Storage(NAS) All-in-One Mini-Computer for Raspberry Pi Compute Module 4, with CM4102032 Included (Assembled)

Produktbeschreibung

All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications Out of the box, no expert knowledge of networking and storage systems required Built-in 2x SATA slots for installing 2.5-inch Solid State Drives 2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc. Easy to use, convenient to online access the documents, videos, and music at any time Do not unplug any device except the USB when it is charged. In order to ensure the normal power supply of CM4, please do not connect other devices when using the Type C interface to program the image. When CM4 is in normal use, it needs to provide a 5V 2A or higher power supply for CM4. Otherwise, problems such as automatic shutdown and frequency reduction may occur. The module does not have any protection, please do not short-circuit the power supply. The Type C port can be used as a power supply or as a USB SLAVE interface to program images. USB2.0 is closed by default, if you want to open it, you need to add dtoverlay=dwc2,dr_mode=host in config.txt.
