Waveshare PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT+ Compatible with Raspberry Pi 5, Supports Multiple OS and MiniPCIe Interface 4G Module (with SIM7600G-H-PCIE),High-Speed Networking

Produktbeschreibung

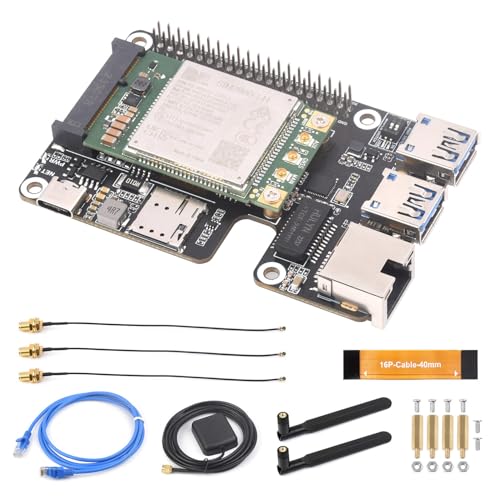

TThis is SIM7600G-H 4G GbE USB3.2 HAT+ version: includes the PCIe HAT + SIM7600G-H-PCIE module + accessories. This adapter board supports convert the PCIe interface to USB3.2, MiniPCIe and Gigabit ETH, designed for Raspberry Pi 5. It is compatible with multiple MiniPCIe 4G modules or MiniPCIe devices, supports PCI-E×1 Gen2 mode and high-speed communication. PCIe to MiniPCIe slot, Gigabit Ethernet, and USB 3.2 Gen1 ports.Designed for Raspberry Pi 5, driver-free, plug and play, with HAT+ standard, onboard I2C EEPROM, and support 40pin GPIO header for stacking and expansion. Onboard MiniPCIe slot, Compatible with SIM7600G-H-PCIE / EG25-G-mPCIe series 4G modules. Note: The 4G module is optional, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module. Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable Onboard 2-ch USB 3.2 Gen1 high-speed interface, for connecting to more peripheral devices, support PCIe to expand USB3.2 MiniPCIe interface, with lower latency. Onboard power monitoring chip for real-time monitoring of voltage, current and power parameters,supports USB port power control via software Onboard SIM card slot for inserting Nano-SIM card. Onboard reset key, power and network indicator for debugging and checking module working status. Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port. Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink); 3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink); 2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink). Supports Global band 4G / 3G / 2G Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning Note: the 4G module such as SIM7600G-H-PCIE or EG25-G-mPCIe is required to enable this function Application Scenarios: Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage... ️Rich WiKi Resources️ We provide official Wiki resources, please contact us for more information.
