Waveshare Pi-Pico-2-W-Sensor-Kit, RPi Pico 2 W Microcontroller Board, Based On Official RP2350 Chip, Dual-Core & Dual-Architecture Design, Supports WiFi and BT

Produktbeschreibung

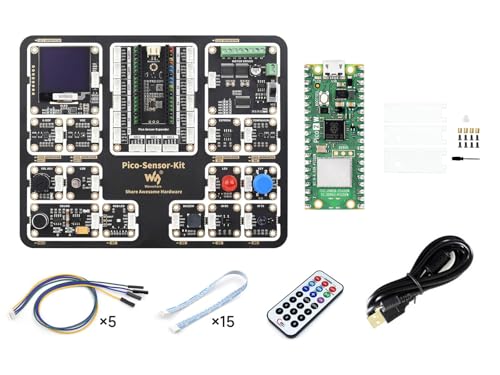

On the basis of the starter kit, equipped with entry-level RPi Pico 2 W Sensor Kit which is including 15 common modules such as LED, button, buzzer, etc. All-in-one design, all modules are connected to Pico 2 W via PCB castellated holes, no soldering or wiring is required. Standard RPi Pico 2 W header, plug-and-play, also comes with clear Acrylic protection case, this kit is your ideal choice to quickly build prototypes or explore the functionality of various sensors RP2350 microcontroller chip designed by RPi. 520KB of SRAM, and 4MB of on-board Flash memory. Castellated module allows soldering direct to carrier boards. Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and BT 5.2 Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Temperature sensor 26xmulti-function GPIO pins. 2xSPI, 2xI2C, 2xUART, 3x12-bit ADC, 16xcontrollable PWM channels. 12xProgrammable I/O (PIO) state machines for custom peripheral support
