Waveshare RP2350 2.8inch Round Display Development Board, 480x480, Based On Raspberry Pi RP2350B Dual-Core&Dual-Architecture Microcontroller, RGB Interface, Support RTC/3.7V Li Battery(Not Included)

Produktbeschreibung

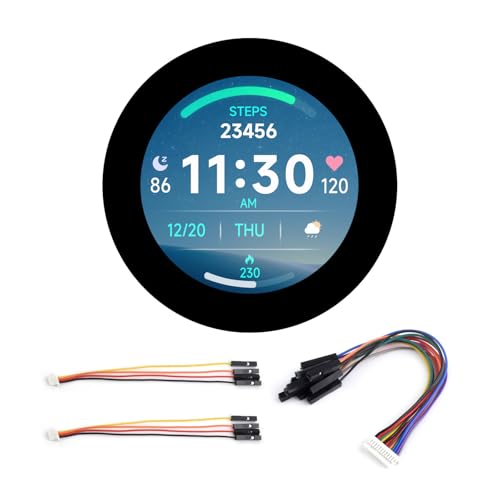

RP2350-Touch-LCD-2.8C is a high-performance, highly integrated MCU board. Integrates high-capacity Flash, with onboard 2.8inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other RP2350 applications. RP2350B microcontroller chip. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz 520KB of Static RAM, and 16MB of onboard Flash memory, with reserved solder pads for PStatic RAM chip expansion. Onboard 2.8inch LCD display, 480x480 resolution. Supports touch control via I2C interface, with interrupt support USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. 12 x Programmable I/O (PIO) state machines for custom peripheral support Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery() recharge management module, etc.. Accurate clock and timer on-chip. Temperature sensor.Accelerated floating-point libraries on-chip
