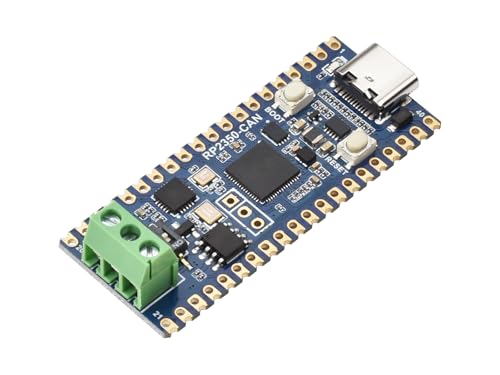

Waveshare RP2350 CAN Development Board Based on Raspberry Pi RP2350A Dual-core & Dual-Architecture Microcontroller, XL2515 CAN Controller, Up to 150 MHz, Compatible with Raspberry Pi Pico Modules

Produktbeschreibung

A Pico-like MCU board based on Raspberry Pi RP2350A,Compatible with most Raspberry Pi Pico modules; Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz; 520KB Static RAM and 4MB onboard Flash memory. Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps; Type-C connector, keeps it up to date, easier to use; Castellated module allows soldering directly to carrier boards. USB 1.1 with device and host support; Low-power sleep and dormant modes; Drag-and-drop programming using mass storage over USB; 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels. Accurate clock and timer on-chip; Accelerated floating-point libraries on-chip; 12 × Programmable I/O (PIO) state machines for custom peripheral support. fully supports CAN V2.0B specification and is capable of transmitting and receiving standard, extended, and remote frames. The communication rate is up to 1 Mbps with SIT65HVD230 transceiver. Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
