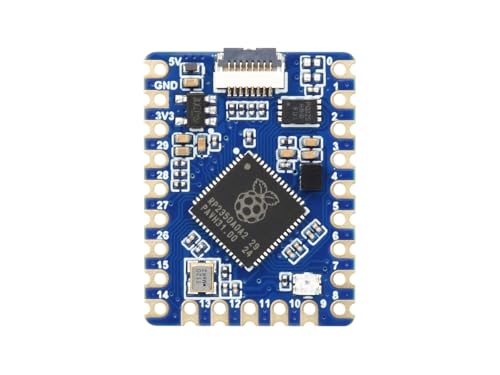

Waveshare RP2350 Tiny Micro Development Board Raspberry Pi Microcontroller Based on Raspberry Pi RP2350A Dual Core Dual Architecture Processor Split USB Interface Design Adapter Board

Produktbeschreibung

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom, Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz 520KB of Static RAM, and 4MB of on-board Flash memory, Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board, Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support, Low-power sleep and dormant modes, Drag-and-drop programming using mass storage over USB, 28 × multi-function GPIO pins (20× via edge pinout, others via solder points) 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels, Accurate clock and timer on-chip, Accelerated floating-point libraries on-chip, 12 × Programmable I/O (PIO) state machines for custom peripheral support Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
