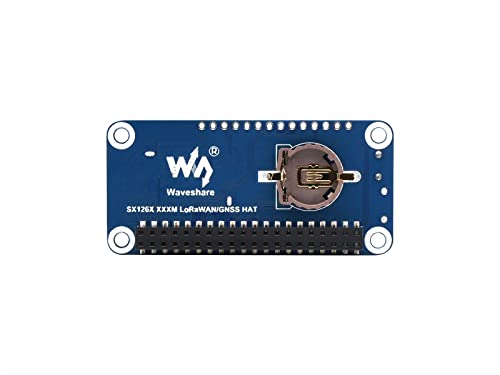

Waveshare SX1262 868/915M LoRaWAN Node Module, LoRaWAN/GNSS Expansion Board for Raspberry Pi, with L76K Module, Sucker Antenna and GPS Antenna, Suitable for HF Band, for LoRaWAN Networks Building

Produktbeschreibung

[SX1262 868/915M LoRaWAN/GNSS HAT]Suitable for HF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS) This series of products are LoRa modules using the new generation of SX1262 RF chip, features higher power efficiency, longer communication distance and stronger anti-interference than SX1278. Suitable for Sub-GHz frequency band network, and is available in HF (850~930MHz) frequency band. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network In addition to the basic LoRaWAN, it also onboards L76K module with GPS/BD support, provides accurate clock and location info for node module. Onboard button cell holder, supports ML1220 rechargeable cell(not included), for preserving ephemeris information and hot starts Standard Pi 40PIN GPIO header, compatible with Raspberry Pi series boards. Onboard 4 LED indicators for module operating status Provide complete supporting documentation manuals (C example programs and user manuals, etc.). Please contact our 24-hour customer service through 'buyer/seller message' to obtain relevant manuals
