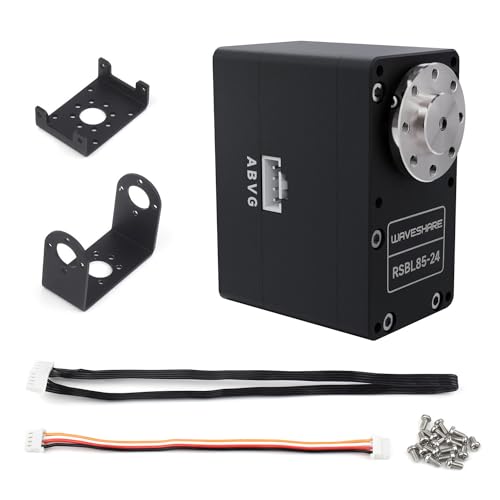

Waveshare Servo Motor, 85kg.cm RSBL85-24, High Precision and Large Torque, Aluminum Alloy Case, with Programmable 360° Magnetic Encoder, Multiple Operation Modes Switchable

Produktbeschreibung

To Improve The Heat Tolerance, Size Stability, Rigidity, And Mechanical Performance Of The Case To Ensure The Strength And Durability Of Servo Motor Power Transmission Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the motor lifetime is effectively extended. Up To 120kg.Cm Torque On 24V Voltage, Suitable For Applications Such As Industrial Equipments And Robotics, Etc. It Is A Ideal Choice For Large Torque Solution Projects The Servo Motor Will Provide Various Feedback Like Position, Load, Speed, Input Voltage, Current And Temperature In Real Time, With Unloading Force Protection When The Servo Motor Is Overheated Or Overloaded Supports Angle Position Control In Both Positive And Negative Directions Up To 7 Loops Under The Default Precision Setting, But The Number Of Loops Will Not Be Saved In Case Of Power Loss. Lowering The Angle Resolution Can Double The Number Of Control Loops
