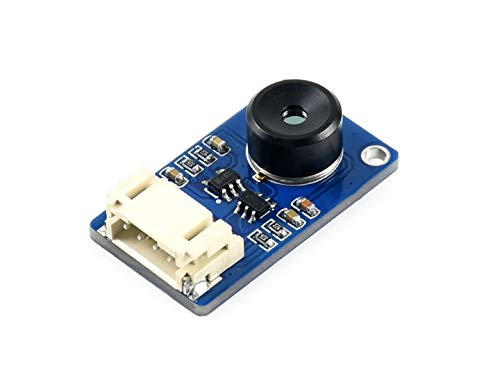

Waveshare Thermal Camera, 32×24 Pixels, Adopts MLX90640 Far-Infrared Thermal Sensor Array, 110 Degree Field of View

Produktbeschreibung
This IR array thermal imaging camera with 32×24 pixels, 110° field of view, communicating via I2C interface. It's for 3.3V/5V operating voltage, supports Raspberry Pi/STM32, etc. host platforms It can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate); Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate Onboard voltage translator, for 3.3V/5V operating voltage; Operating current: <23mA; Communication interface: I2C (address 0x33); Field of view (Horizontal×Vertical): 110°×75° (wide angle FOV, suit for short range measuring) Applications: High precision non-contact temperature measurements; IR thermal imaging devices, IR thermometers; Smart home, intelligent building, intelligent lighting; Industrial temperature control, security monitoring, intrude/movement detection; with online user manual, please refer to while using
