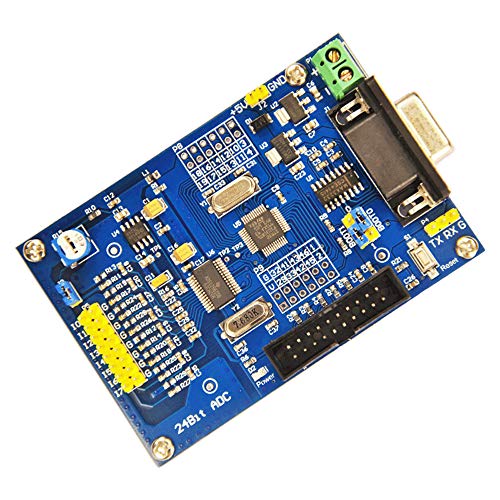

iHaospace High Precision Acquisition Module ADS1256 STM32F103C8T6 Development Board 24 Bit ADC Module

Produktbeschreibung
Input voltage range 5.5V - 12V (5V power supply, please connect directly to 2); 10. power indicator light LED 5V power supply input terminal (1.2 two power supply, only one can) JTAG interface, designed by the definition of JLINK-V8 or V9 STM32F103C8T6 leads to GPIO, which is convenient for the development of two times. The silk screen is directly corresponding to the pin number of the chip. Control MCU: STM32F103C8T6
