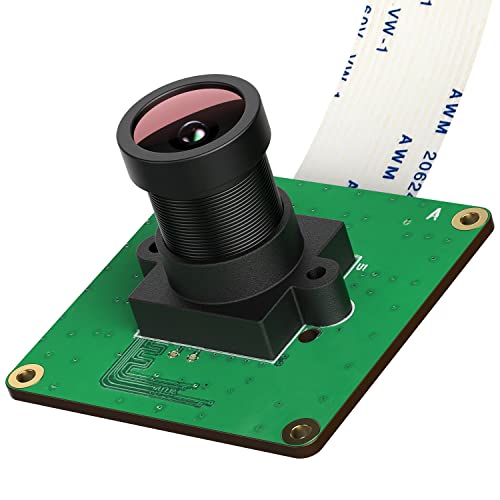

innomaker Raspberry Pi Industriekameramodul STARVIS IMX327LQR Farb-CMOS-Sensor 2.13 M Pixel Weitwinkel-Fischaugenobjektiv für Rasp Pi 4 3B + 3B A+ CM3 + CM3

Produktbeschreibung

CAM-MIPI327RAW is an industrial camera module for Raspberry Pi 4 3B+3B A+ CM3+CM3 to get raw sensor data by plugging directly into the CSI-2 Pi camera interface. On-board STARVIS IMX327LQR Color CMOS Active Pixel Type Solid State Image Sensor with Square Pixel Array 7' Effective Pixels. Diagonal 6.46 mm (Type 1/2.8) Number of pixels: 1920 x 1080 This PI-camera IMX327LQR module connects to the Raspberry Pi CSI connector via a ribbon cable. CSI-2 output: 2 tracks/RAW10 or RAW12 CSI-2 standard speed: 891 Mbps / lane. It is a fully V4L2 compatible device. Includes wide angle fisheye lens. Lens holes: 20mm, 2 x D2.0mm Field of view: D = 148 degrees, H = 118 degrees. The lens is replaceable, mounting holes: 4 x 2.2 mm. CAM-MIPI327RAW Raspberry Pi camera module provides user manual, driver, source codes from Wiki. Support customized production service.
