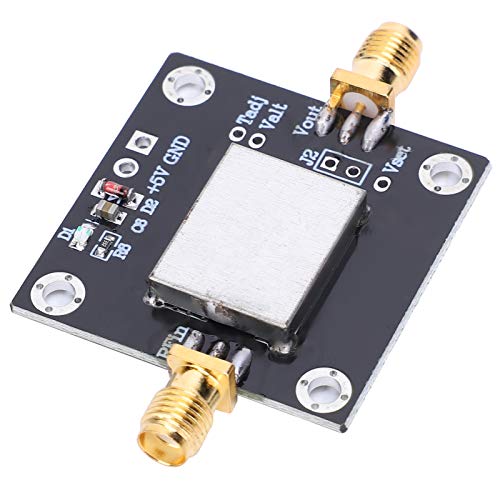

AD8317 Measurement Module | 1MHz - 10GHz Logarithmic Detector | 60dB Dynamic Range for RF Transmitters/Base Stations/Receiver | 50Ω Impedance, 3.3-5V DC

Produktbeschreibung

Accurate RF Measurement Monitoring - AD8317 module delivers 60dB dynamic range with ±0.5dB linearity, ideal for PA set point control in transmitters and radio line monitoring. Industrial-level accuracy for 5G/WiMAX infrastructure. Wideband 1MHz-10GHz Performance - This logarithmic detector maintains 50Ω impedance across full frequency spectrum, ensuring minimal transmission loss for WLAN, receiver and cellular base station RSSI measurements. Compact Expert Solution - The 22mV/dBm output slope module fits in palm-sized spaces while providing -55dBm to 0dBm high linear range. Suitable for field technicians' portable test equipment. Low-Consumption High-Effectiveness Design - Functioning at just 20mA current with 3.3-5V DC supply, this aerospace-level component surpasses bulkier alternatives in consumption-sensitive applications. Rugged Durability - Encased in reinforced housing with gold-plated connectors, this detector module withstands 10,000+ insertion uses for long-term stability in harsh RF environments.
